△Specifications:
| Connector | SMP(W) Male Connector |
|---|---|
| Cable | JM150 Coaxial Cable |
| Impedance | 50 Ω |
| Frequency Range | 0~18GHz |
| Dielectric Withstanding Voltage | ＞500 Vdc (inner conduct/outer conduct) |
| Working Voltage | ＞500 Vdc |
| Insulation Resistance(MΩ) | ≥5000MΩ |
| Contact Resistance(mΩ) | Inner Contact: ≤6.0mΩ |
| Outer Contact: ≤2.0mΩ | |
| Insertion loss | According As The Cable |
| VSWR | ≤1.45(0~18GHz) |
| Weight | ~ |
| Temperature range | -40 ~ +125 °C |
| ROHS | Compliant |
| Durability | 100Cycles |
△Materials &Plating
Body: Brass & Gold Plating
Cover: Brass & Gold Plating
Lock Ring: Beryllium Copper & Nickel Plating
Contact Pin: Beryllium Copper & Gold Plating
Insulator: PTFE

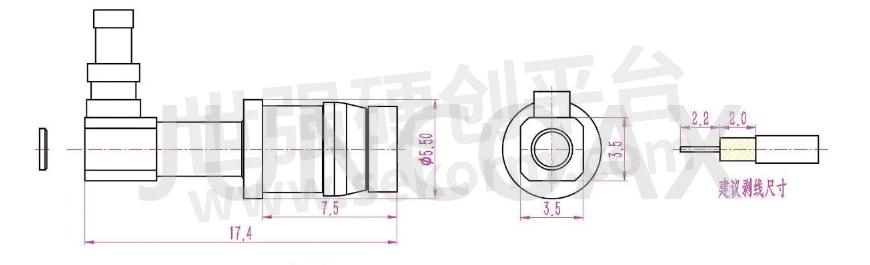

△Dimensions:
RoHS Compliance
All raw materials and product manufactured by Supplier should be RoHS compliant.

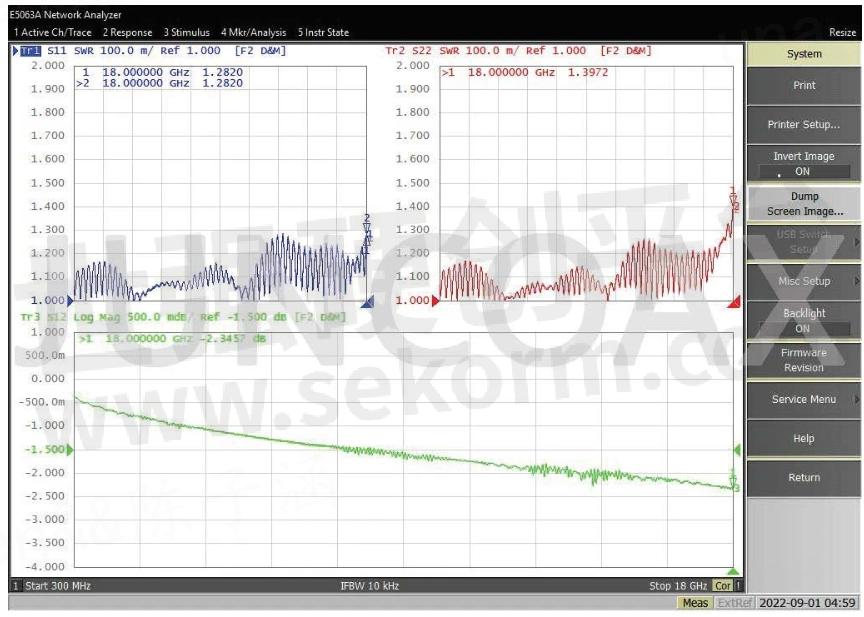

△TEST DATA:
