『Product Highlight』Kinghelm Flexible Flat Cable KH-FFC-A0.5-35P-100MM: High-Density Connectivity Meets Flexible Transmission

PublishTime： 2025-07-04 Article Source：Kinghelm News

The Flexible Flat Cable (FFC) is an indispensable solution for flexible and efficient internal connections in modern electronic devices. Depending on structural type, pin count, pitch, contact orientation, and insertion thickness, FFC cables are available in a wide variety of specifications. For instance, contact orientation can be classified into same-side (Type A) or reverse-side (Type B), where the former suits parallel interface alignments and the latter fits mirrored connectors. Common pitch options include 0.5mm and 1.0mm, with smaller pitch allowing higher pin density and more compact layouts. The number of pins can range from a few to over a hundred, accommodating both low-speed control and high-speed data transmission applications.

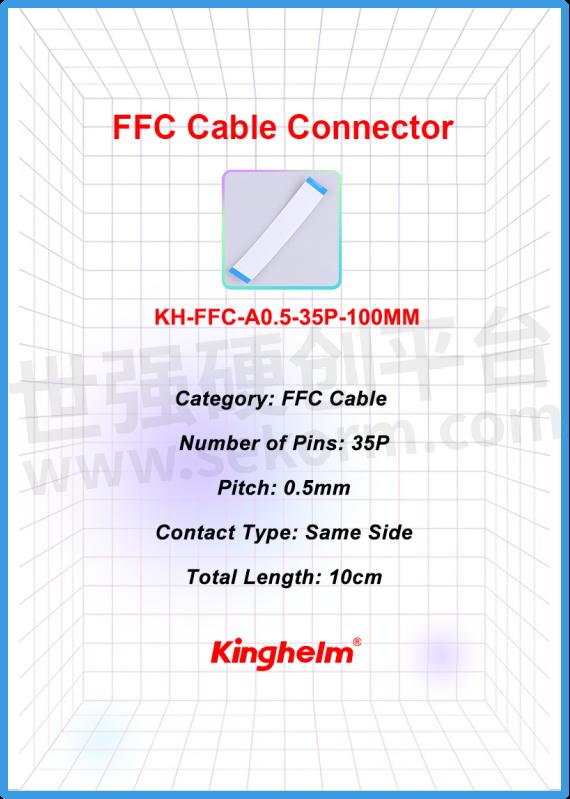

Kinghelm KH-FFC-A0.5-35P-100MM Product Image

FFC cables are widely used across industries such as consumer electronics, industrial automation, medical devices, automotive electronics, and smart home systems. In laptops, they connect keyboards, touchpads, and displays; in printers, they transmit control signals to the printhead; and in camera modules and in-vehicle displays, they serve as crucial signal bridges. Especially in environments requiring compact layout, dynamic flexing, or repeated motion, FFC cables are the go-to solution due to their excellent flexibility, small size, and ease of assembly.

Against this backdrop, the Kinghelm KH-FFC-A0.5-35P-100MM stands out as a high-performance 35-pin FFC cable, offering competitive advantages for high-density interconnection needs. It features a standard 0.5mm pitch, total length of 100mm, and 0.3mm insertion thickness, ensuring wide compatibility with standard ZIF connectors. The same-side contact structure is ideal for devices with aligned interface orientations, helping to reduce assembly errors and signal loss while improving assembly efficiency and connection reliability.

Superior Craftsmanship & Materials

From a manufacturing perspective, the KH-FFC-A0.5-35P-100MM reflects Kinghelm’s commitment to quality. The internal conductors are made from high-purity copper, ensuring low resistance and signal integrity. The insulating layer uses eco-friendly, high-flexibility materials, offering outstanding bend resistance and aging durability. Rigorous testing has shown it can withstand thousands of flex cycles without cracking or deforming, making it highly reliable for dynamic applications such as frequently opened or moving modules.

Key Advantages

This model strikes a smart balance between high pin count and space-saving design, while the compact 100mm length and standard packaging support quick routing and system optimization. With 35 parallel channels, it can transmit a variety of control and data signals simultaneously, significantly improving data throughput and system responsiveness. Weighing only 0.63 grams, its slim and lightweight build adds minimal burden to portable devices, contributing to overall product miniaturization and energy efficiency.

Highlights & Industrial Application

The KH-FFC-A0.5-35P-100MM FFC cable is not just a basic cable—it’s a key component that enhances product performance and production efficiency. Supplied in bag packaging, it supports batch delivery, inventory management, and automated placement processes. As a trusted domestic brand, Kinghelm manufactures this product under ISO 9001-certified processes, ensuring that every cable meets strict industrial and consumer electronic standards.

This model is already widely adopted in camera modules, barcode scanners, compact displays, touchscreen controllers, and embedded computing boards, receiving consistent praise from industry clients.

●For example, in a high-resolution industrial camera, it serves as the high-speed channel between the image sensor and main control board, delivering low-latency, distortion-free data transmission while maintaining high mechanical flexibility.

●In a smart door lock’s touchscreen control system, it enables precise pin-to-pin connection, significantly improving both assembly yield and user response performance.

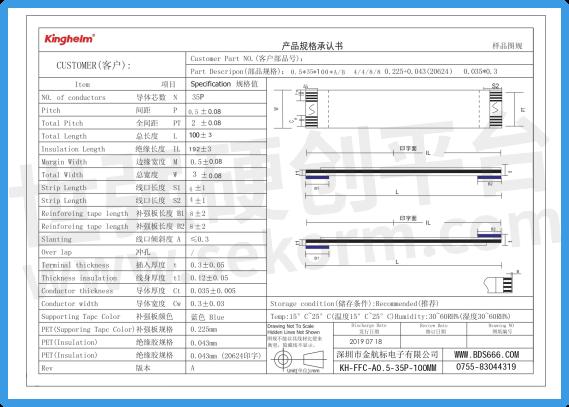

Kinghelm KH-FFC-A0.5-35P-100MM Specification

Conclusion

In summary, the Kinghelm KH-FFC-A0.5-35P-100MM offers top-tier electrical performance, premium materials, and outstanding flexibility and reliability—all in a compact design. Combining high-density, high-flexibility, and high-reliability, it is a professional-grade FFC cable ideal for manufacturers seeking precision, efficiency, and performance in compact electronic applications. For companies aiming to improve their product competitiveness through robust interconnect solutions, this FFC cable from Kinghelm is a highly recommended choice.
