A New 5.0V Type Crystal Oscillator that Combines High-Driving Ability and Ultra-Low Phase Noise
KDK has developed a new 5.0V type Crystal Oscillator that combines High-Driving Ability and Ultra-Low Phase Noise characteristics required for industrial equipment.
The new product is available in five package types ranging from 2016 size to 7050 size and can be considered for a wide range of applications.
Features
Size：2016/2520/3225/5032/7050 size 5types
Frequency Range：5MHz～60MHz
Output：CMOS
Driving Ability：50pF
Supply Voltage：+5.0V
Operating Temperature：-40～+85℃
Ultra Low Phase Noise, Ultra Low Phase Jitter

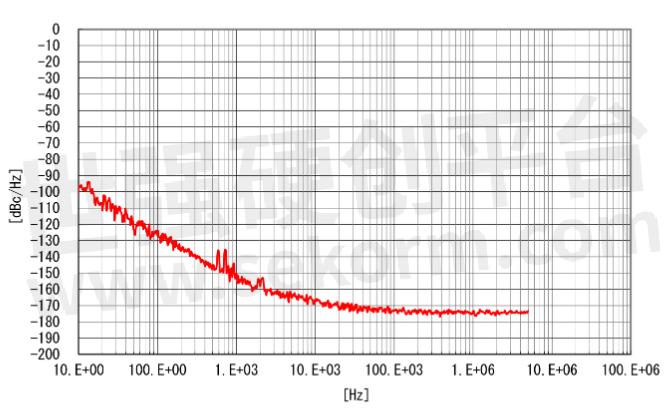

Phase Noise Data(Typical.)
Ex. 20.000MHz, CMOS

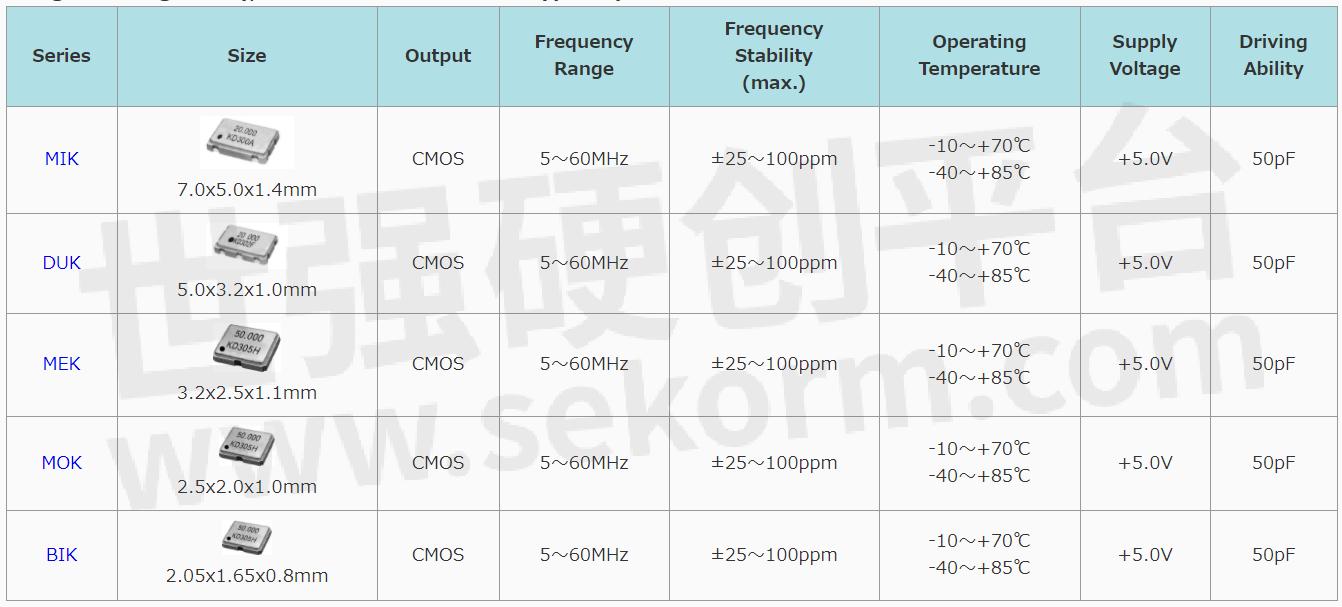

Products
High-Driving Ability, Ultra Low Phase Noise Type Crystal Oscillator
