Maswell 4G Antenna AN_GSM_023L Has 700MHz Frequency Point, The Highest Gain Value is 2dBi
The frequency range of MasWell Column Screw Mounted 4G/3G/LTE Antenna AN_GSM_023L is 698~960/1710~2690MHz, including 700MHz frequency point, the highest gain value is 2dBi. This antenna model adopts the installation method of screw installation, the installation is firm, not easy to fall off. The antenna is made of ABS material, which is durable and can prolong the service life of the product and ensure the stability of antenna performance, good waterproof performance, suitable for outdoor environment.
Figure 1. Product Diagram
Product Features of AN_GSM_023L：
Frequency Range : 698~960/1710~2690MHz
Polarization : Linear
Gain ：2dBi (maximum)
V.S.W.R ：≤3.0
Antenna Cover Material ：ABS
Mounting Method : Screw
Custom connectors and cables available
Application of AN_GSM_023L：
Terminal Equipment
Industrial routing devices
IoT Devices
AR/VR Devices
CPE Equipment

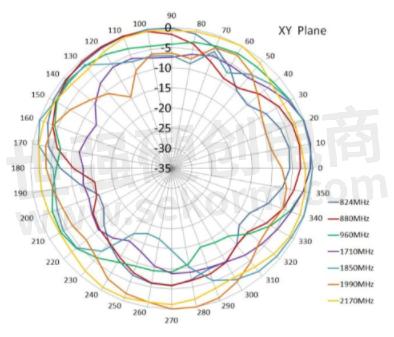

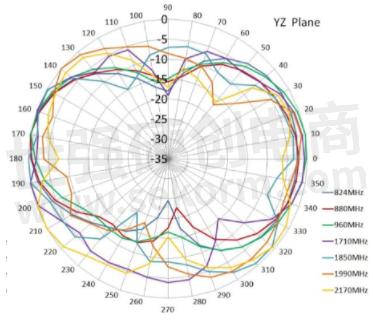

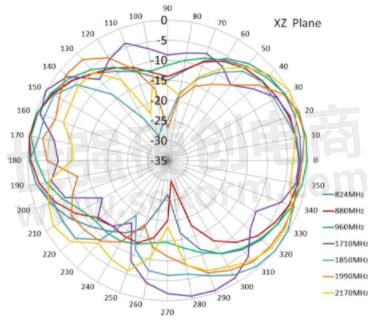

Figure 2-4. Antenna Radiation Patterns
