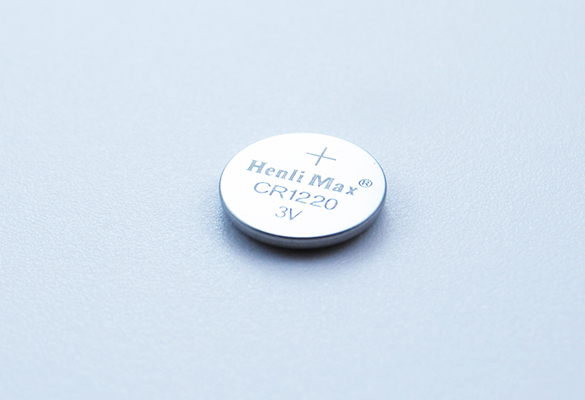

The CR1220 is a widely used lithium coin cell battery with a compact size (12mm diameter × 2.0mm thickness) and a nominal voltage of 3V. Its low self-discharge rate, long shelf life, and stable performance make it indispensable in devices like watches, calculators, key fobs, and medical equipment. However, users often encounter situations where the CR1220 is unavailable, prompting the need for equivalent alternatives. This article explores compatible AG-series and other lithium coin cell batteries, analyzing their specifications, performance, and suitability as CR1220 substitutes.
Understanding CR1220 Specifications
Before identifying equivalents, it is crucial to grasp the CR1220’s core attributes:
Voltage: 3V (lithium manganese dioxide chemistry).
Capacity: Typically 40mAh, though some variants reach 60mAh.
Operating Temperature: -20°C to 60°C, with optimal performance between 0°C and 40°C.
Dimensions: 12.0mm diameter × 2.0mm height.
Self-Discharge Rate: Retains 90% capacity after 10 years of storage at 20°C.
These parameters ensure the CR1220’s reliability in low-power, long-term applications. Any equivalent battery must match or exceed these metrics to avoid compromising device functionality.
AG Battery Series: Are They Compatible?
The term "AG battery" typically refers to alkaline button cells (e.g., AG3, AG4, AG13), which differ significantly from lithium coin cells like the CR1220. Alkaline batteries have a lower nominal voltage (1.5V) and higher self-discharge rates, making them unsuitable as direct substitutes. However, some retailers and manufacturers mislabel lithium coin cells as "AG" variants, causing confusion. For clarity, this article focuses on lithium-based equivalents rather than alkaline AG cells.
Direct Lithium Coin Cell Equivalents
Several lithium coin cells share the CR1220’s dimensions and voltage, making them interchangeable in most applications:
DL1220: Produced by Duracell, the DL1220 is chemically identical to the CR1220, offering the same 3V voltage and 40mAh capacity. It is widely used in electronics and is fully compatible with devices requiring a CR1220.
ECR1220: Energizer’s equivalent, the ECR1220, matches the CR1220’s specifications and is often marketed as a direct replacement. Its lithium chemistry ensures stable voltage output over time.
KCR1220: A variant with similar performance, the KCR1220 is reliable for long-term use in memory backup systems and low-drain devices.
LM1220: Another lithium coin cell with identical dimensions and voltage, the LM1220 is interchangeable with the CR1220 in most applications.
5012LC: This model, though less common, offers comparable performance and is compatible with CR1220-powered devices.
BR1220: A High-Temperature Alternative
The BR1220 is a lithium battery with a key difference: it uses carbon monofluoride chemistry, granting it a wider operating temperature range (-30°C to 60°C) and higher tolerance for extreme conditions. While its capacity (50mAh) slightly exceeds the CR1220’s, its voltage starts at 3V and gradually declines to 2.2V over time. This makes the BR1220 suitable for devices requiring resilience to temperature fluctuations, such as automotive electronics or outdoor sensors. However, its voltage profile may not align with devices expecting a stable 3V output, so compatibility testing is advised.
Performance Considerations
When substituting a CR1220 battery, consider the following:
Voltage Stability: Lithium coin cells maintain a near-constant 3V until depletion, whereas alkaline batteries (e.g., AG13) drop to 1.2V as they discharge.
Using an alkaline AG cell in a CR1220-powered device will likely cause malfunction.
Capacity and Drain: High-drain devices (e.g., digital cameras) may require a higher-capacity CR1220 variant or a battery with lower internal resistance. Most equivalents, however, suffice for low-drain applications like watches.
Shelf Life: Lithium batteries like the CR1220 and its equivalents outperform alkaline AG cells in storage longevity, retaining charge for up to a decade.
Conclusion
The CR1220 battery remains a cornerstone of low-power electronics due to its compact size, stable voltage, and longevity. When seeking equivalents, users should prioritize lithium coin cells with matching dimensions (12mm × 2.0mm) and voltage (3V). Models like the DL1220, ECR1220, KCR1220, and LM1220 are direct substitutes, while the BR1220 offers enhanced temperature resilience for specialized use cases. Avoid alkaline AG batteries, as their 1.5V output and higher self-discharge rates render them incompatible. By selecting a verified CR1220 battery equivalent, users can ensure seamless performance in watches, calculators, key fobs, and other critical devices, maintaining the reliability that makes the CR1220 a trusted choice worldwide.
